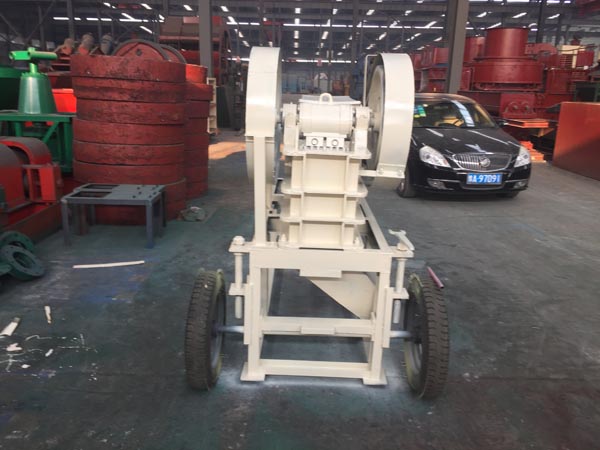

The detailed pictures for crushing machine

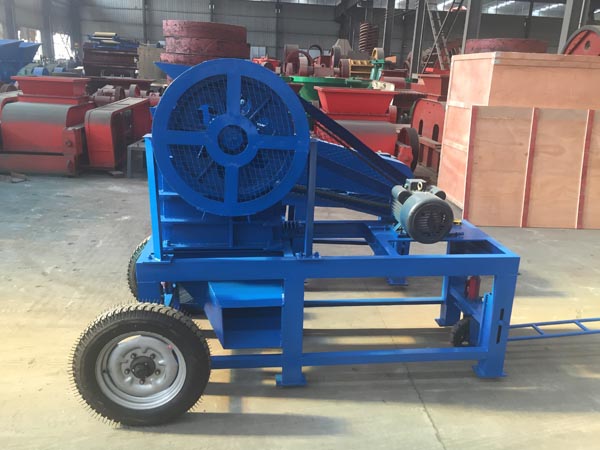

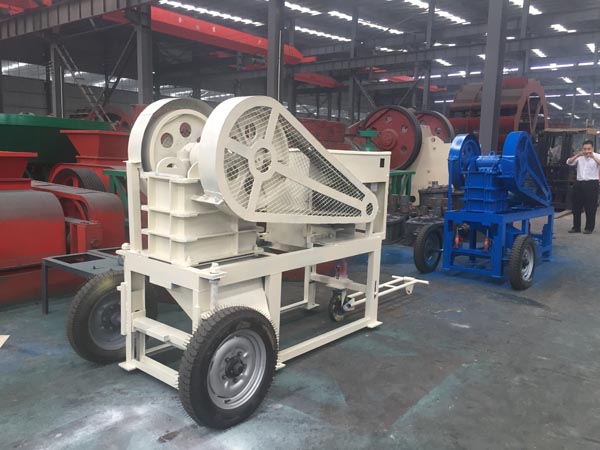

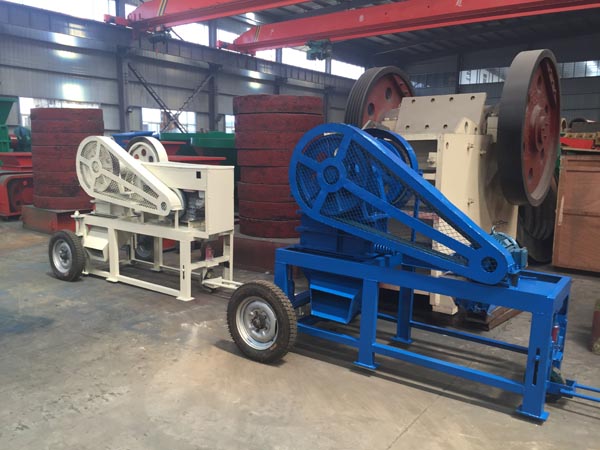

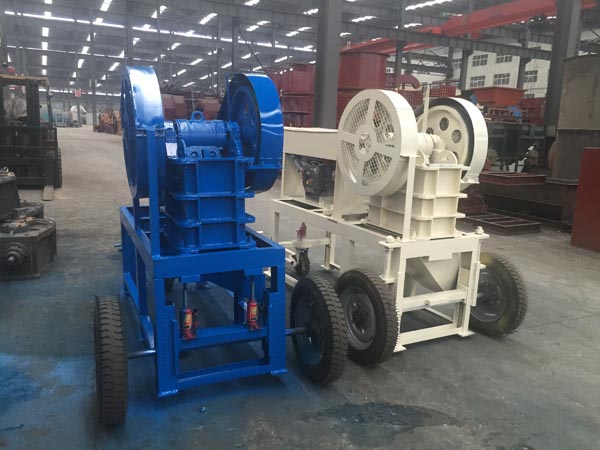

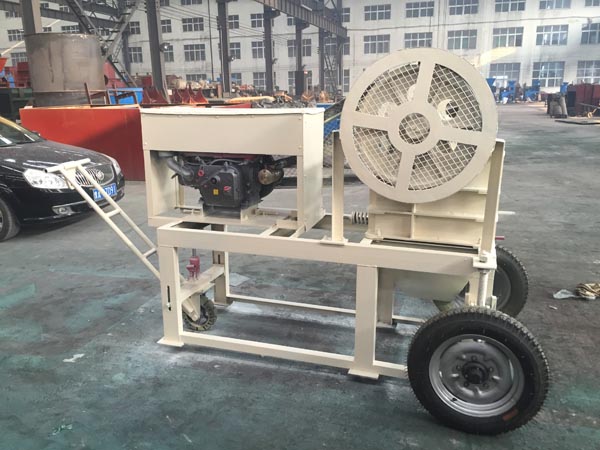

Mobile jaw crusher with diesel engine

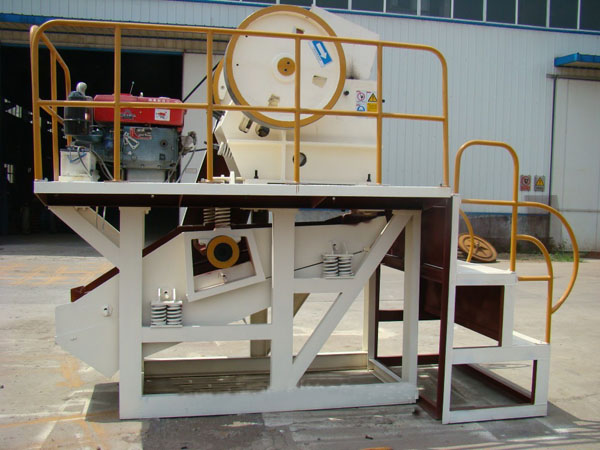

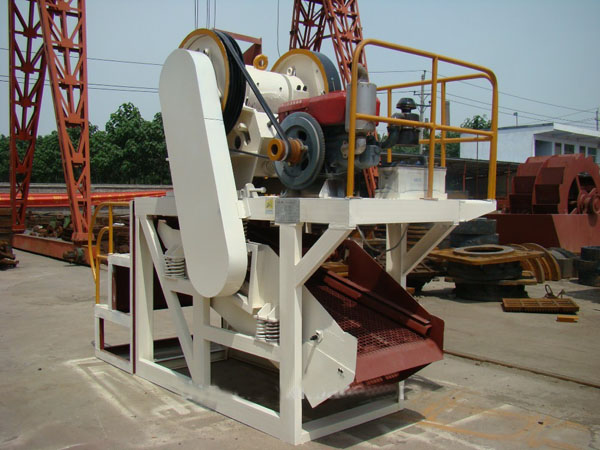

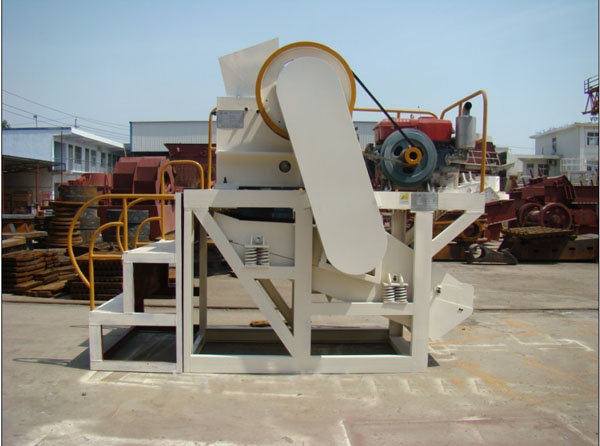

Vibrating screen integrated machine for jaw crusher

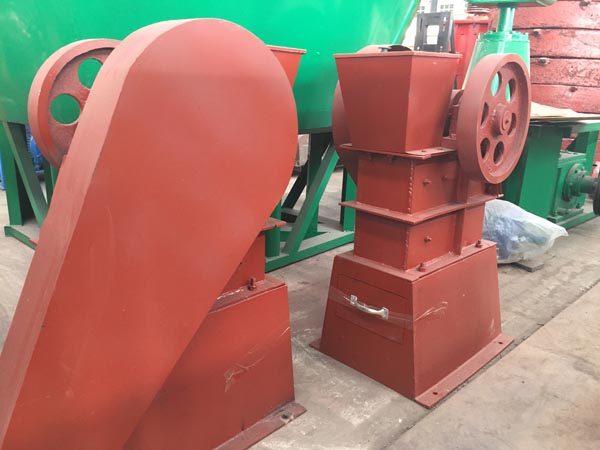

Laboratory jaw crusher

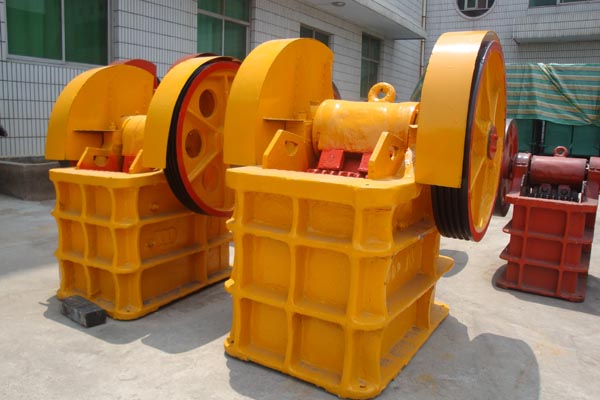

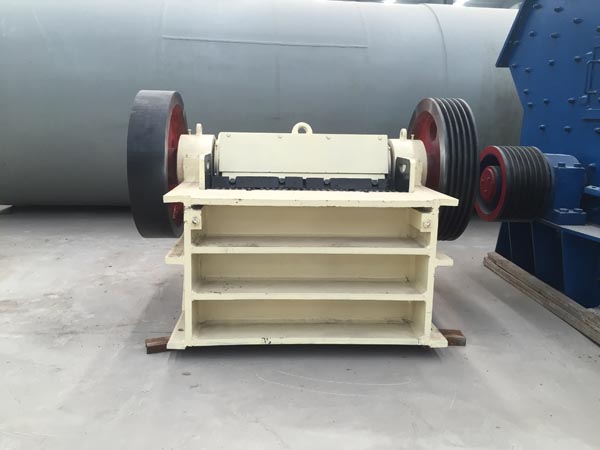

Description of Jaw crusher

Jaw crusher is not only able to be used together with mine-selecting and gravel processing equipments but also be used independently. The Jaw crusher is used for Primary crushers and Secondary crushers for crushing all kinds of minerals and rocks with compressive strength less than 320 mpa. There are two types of Jaw crusher: coarse jaw crusher and fine jaw crusher. We Zhengzhou Huahong Machinery also manufacture Mobile jaw crusher, Single toggle jaw crusher and other Jaw breakers.

Working principle of Jaw crusher

The strip and strip pulley are driven by a motor, and the moving jaw moves up and down via eccentric shaft. The angle between fixed jaw and moving jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It will become bigger when the moving jaw runs up. The moving jaw board leaves the fixed jaw board under the action of pole and spring, and then the end products come out from the crushing cavity. And also, Jaw crusher is always used as the Primary jaw crusher.

Jaw crusher’s Performance and Features

1. Crushing cavity is deep and there is no dead area, which improves feeding capacity and output;

2. High reduction ratio and uniform final product size;

3. Spacing piece type discharge-hole adjustment device is reliable and convenient;

4. Reliable and safe lubrication system, convenient replacement of parts and small work load of maintenance;

5. Simple structure, operational reliability and low operation cost;

6. Energy-saving: single machine can save energy by 15% to 30%; the system can save energy by over 30% to 60%;

7. Large adjustment range of discharge hole can meet the demands of different users;

8. Low noise and little dust;

9. Simple structure; convenient maintenance and use; stable performance; low operation cost; high reduction ratio.

10. The outlet employs pad-style adjustment devices, convenient and reliable, and increases the flexibility of the equipment.

Jaw crushers / Jaw breakers operating environment

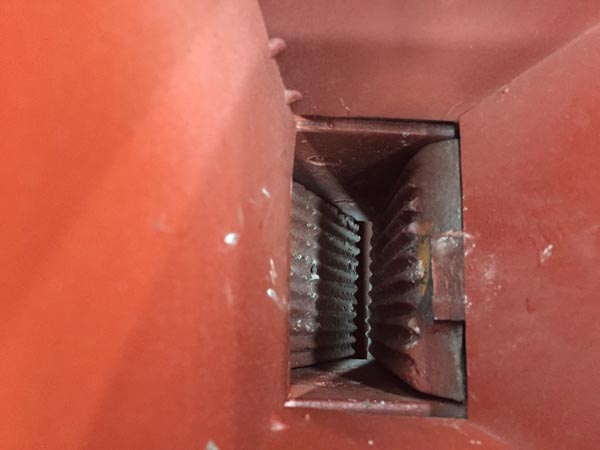

When in the process of the great broken stones broke into small stones, the first crusher is often referred to as 'master' crusher, the longest history and most solid crusher is jaw crusher. When feed to jaw crusher, materials from the top of the entrance into the broken room with tooth broken, the tooth broken tremendous force the material to the top of the wall, it will be broken into smaller stones. Supporting the tooth movement is an eccentric shaft. This axis runs through the fuselage frame. Eccentric movement is usually arisen by fixed at both ends of the flywheel axis. Flywheel and eccentric support bearing is often using spherical roller bearings. Bearing working environment is extremely harsh. Bearings must support enormous impact load\abrasive water and high temperature. Though the working environment is extremely harsh, the jaw crusher still can work very reliably. this is a key element to ensure the productivity.

Technical parameters of Jaw crusher
