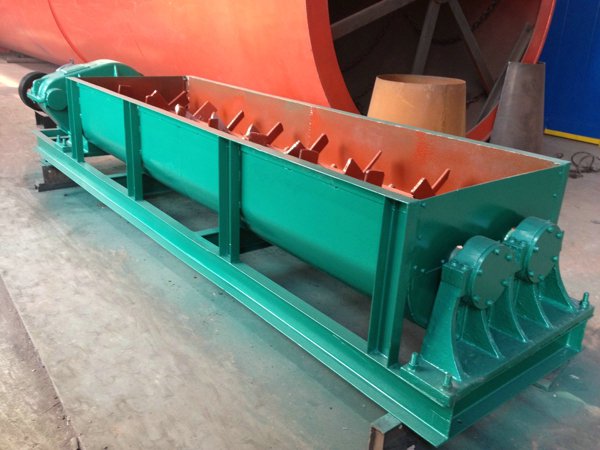

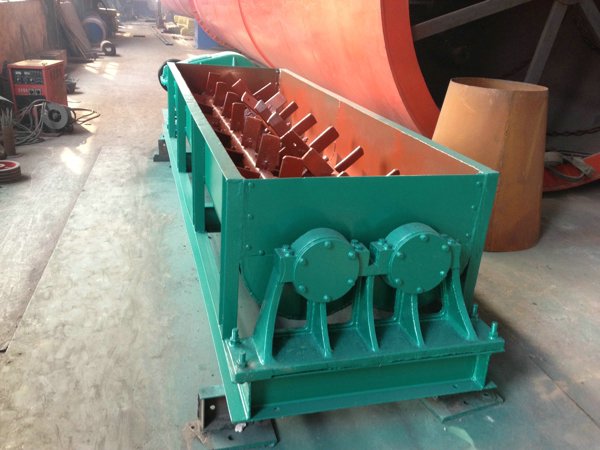

This machine is used to stir the mixture of raw materials.it is the preparatory work for molding machine,its purpose is to evenly stir the mixture and make it more densely.This dualshaft mixer is mainly used for various powdery materials, such as clay, shale, cola gangue and fly ash, etc, which can well stir materials. It is the important equipment in brick making production.
Working principle:

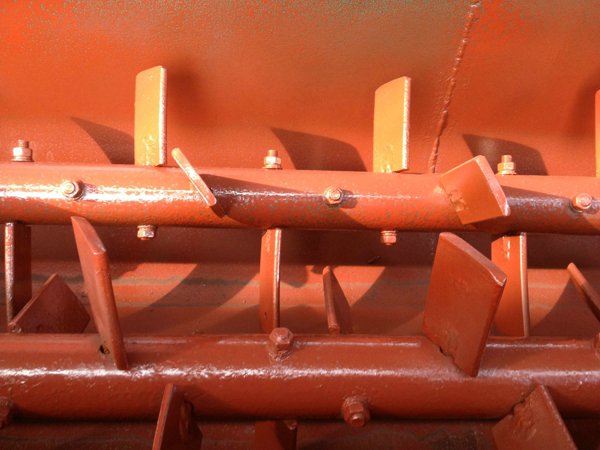

It uses two root of spiral axle by symmetric rotation, when conveying dry ash powder materials, add water synchronously, stir evenly humidifying dry ash, powder materials. Then loading into other transportation or conveying equipment.
Main Technical Parameter of JB double shaft mixing machine
Type | Output (m3/h) | Speed of main shaft(r/min) | Matched power(kw) | Overall dimensions(L*W*H)(mm) |
JB200 | 20-25 | 60 | 22kw | 3680*1300*960 |
JB250 | 25-28 | 60 | 22kw | 4180*1300*960 |
JB300 | 30-35 | 60 | 30kw | 4680*1300*960 |
JB350 | 30-40 | 60 | 45kw | 5180*1300*960 |
