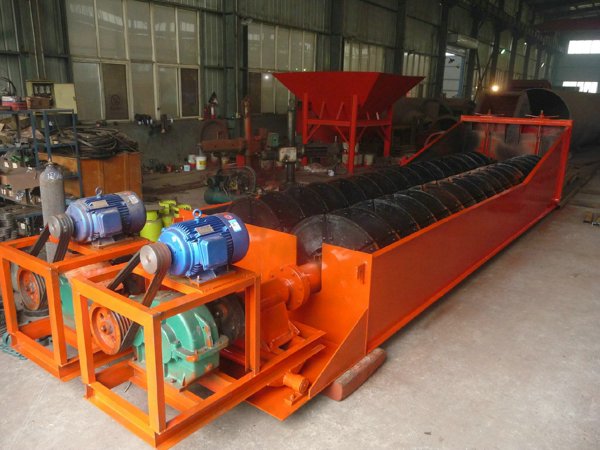

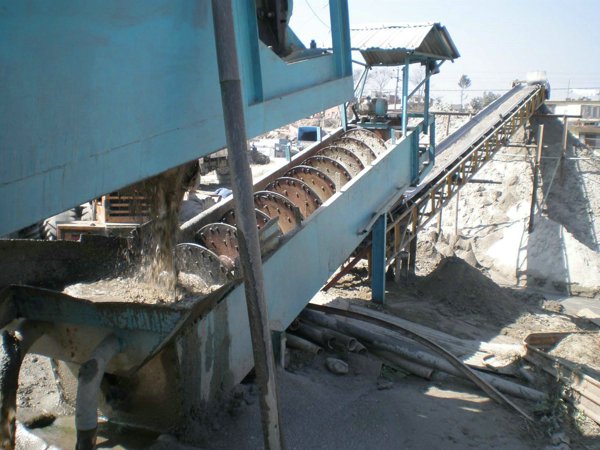

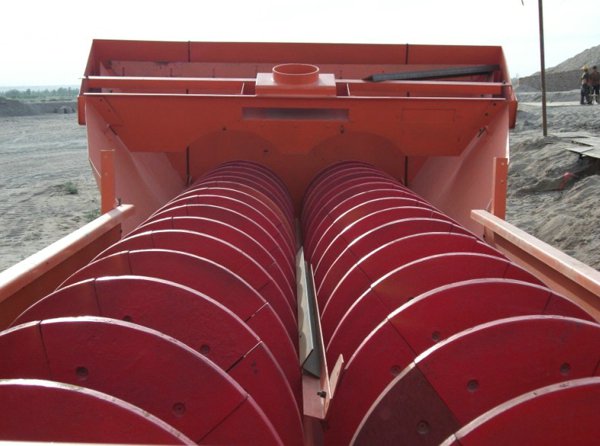

Spiral classifier introduction:

Our spiral classifiers are widely used in the distribution of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing. Advantages are simple structure, reliable working condition and convenient operation.

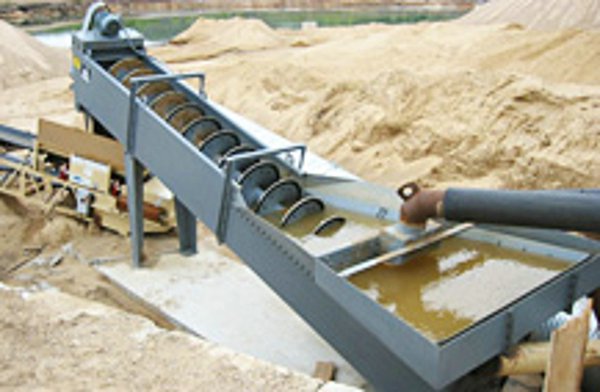

Spiral classifier working principle:

According to the principle that different grains are with different specific gravity and sedimentation rate in the liquid, the fine ore flows in the water and the coarse ore sinks in the bottom. The classifier that has machine grading by discharging from the top can filtrate the materials and send coarse materials to the feeding mouth and discharge the fine material from the pipe. The seat of the machine adopts channel steel and body adopts armor plate and the spiral axle adopts wrought iron, so it??s durable. The lifting equipments have two types, by electricity and hand.

Main Techincal Parameters of Spiral Classifier:

Model	Spiral diameter (mm)	Trough length (mm)	Spiral rotation speed (r/min)	Capacity(t/d)		Power(kw)		Weight (t)
Model	Spiral diameter (mm)	Trough length (mm)	Spiral rotation speed (r/min)	Return sand	Overflow	Driving	Flifting	Weight (t)
FG7.5	750	5500	6-10	340-570	65	3.0	Manual	2.7
FG10	1000	6500	5.0-8.0	675-1080	110	5.5	Manual	4.43
FG12	1200	6500	5.0-8.0	1170-1870	155	5.5	1.5	8.7
FG15	1500	8400	4.0-6.0	1830-2740	235	7.5	2.2	12.5
FG20	2000	8400	4.0-6.0	3240-5400	400	11	2.8	20.5
FG24	2400	9210	3.6	4650-7450	580	15	3.0	25.6
FG30	3000	1250	3.2	11625	890	22	4.0	37.7
2FG12	1200	6500	5.0-8.0	2340-3740	310	5.5x2	1.5x2	14.0
2FG15	1500	8400	4-6.0	3660-5480	470	7.5x2	1.5x2	21.1
2FG20	2000	8400	3.0-5.5	7780-11880	800	11x2	2.8x2	36.5
2FG24	2400	9210	3.6	13600	1160	15x2	3x2	46.8
2FG30	3000	12500	2.0-3.2	14600-23400	1785	22x2	4x2	73.0
