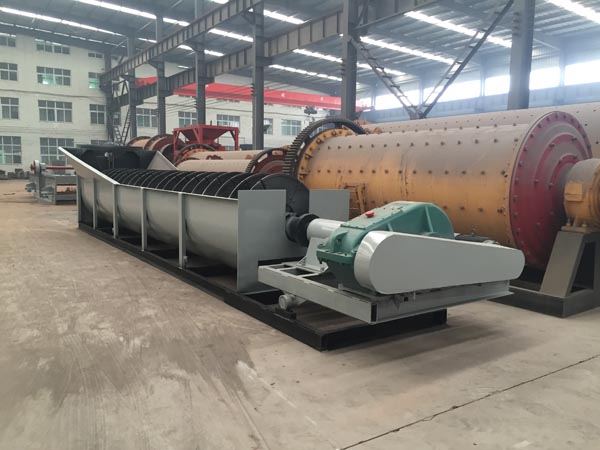

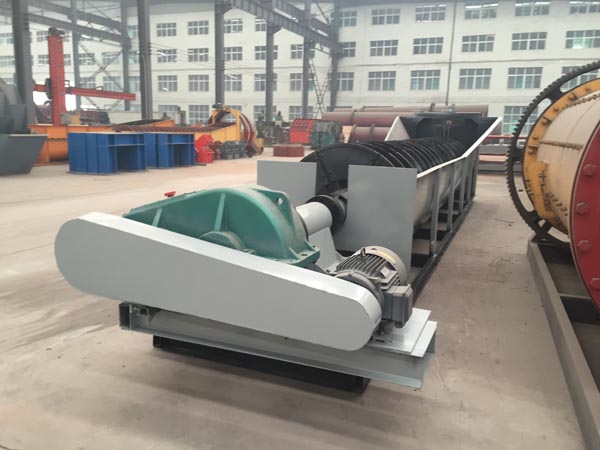

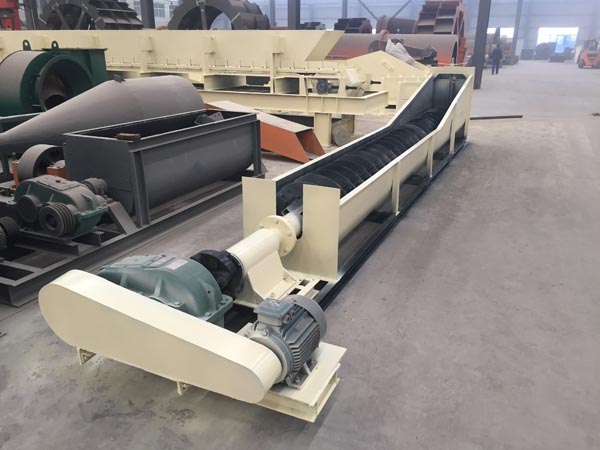

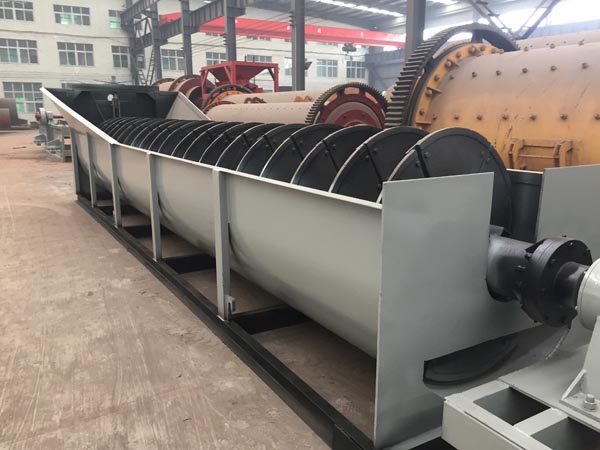

The introduce of spiral ore washer:
Ore washer is used for cleaning sediment of iron, manganese, limestone, or tin that contains much mud before mine selection. The main functions of this wash mine machine are mixing, washing, separating and desliming minerals. It is also applied in construction or power station project for cleaning stone with washing hydraulic pressure less than 147-196kpa.
Main Technical Parameters of Spiral Ore Washer
Type | Model Specifications | Screw Diameter | Selected Particles | Water Consumption | Production Capacity | Motor Power (kw) | Overall Dimensions (L×W×G) | Weight |
Light Single spiral | XL-508 | 508 | ≤10 | 14-88 | 20 | 705 | 8000×2343×1530 | 2670 |
XL-610 | 610 | ≤10 | 14-165 | 50 | 705 | 8000×2490×1530 | 3800 | |
XL-762 | 762 | ≤10 | 18-124 | 75 | 11-15 | 9070×2650×1638 | 5225 | |
XL-914 | 914 | ≤10 | 18-162 | 100 | 11-15 | 9070×2650×1638 | 6370 | |
XL-1118 | 1118 | ≤10 | 27-333 | 175 | 30 | 9070×2830×1900 | 9800 | |
Light Double Helix | 2XL-762 | 762 | ≤10 | 40-250 | 140 | 2×11 | 11580×3965×2370 | 7440 |
2XL-914 | 914 | ≤10 | 105-620 | 200 | 215 | 9070×3300×1638 | 9531 | |
2XL-1118 | 1118 | ≤10 | 125-1400 | 350 | 222 | 9070×3890×1900 | 16700 | |
Heavy Single spiral | XLZ-762 | 762 | ≤60 | 355-450 | 80-125 | 22 | 11580×5226×2370 | 9800 |
XLZ-914 | 914 | ≤60 | 400-600 | 125-175 | 30 | 6980×1200×1340 | 11800 | |
XLZ-1118 | 1118 | ≤75 | 500-750 | 180-250 | 37 | 7400×1380×1950 | 13900 | |
Heavy Double spiral | 2XLZ-762 | 762 | ≤60 | 600-800 | 100-150 | 2×22 | 6980×2019×1340 | 16800 |
2XLZ-914 | 914 | ≤60 | 700-900 | 150-200 | 2×30 | 7120×2146×1590 | 20800 | |
2XLZ-1118 | 1118 | ≤75 | 900-1100 | 200-300 | 2×37 | 8500×2861×2150 | 23870 |
