Sand Making Plant

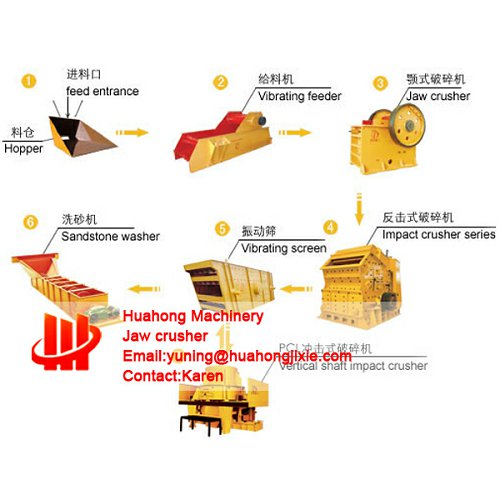

Raw materials in big size go trough hopper, and are sent to jaw crusher evenly by vibrating feeder for primary crushing. The crushed materials are sent to impact crusher or composite crusher by belt conveyor for secondary crushing, and then the crushed materials are sent to vibrating screen by belt conveyor for screening. The final sand (the final products below the bottom sieve) is sent to sand washer to clean, and then to the final products pile. The bigger pieces stones (stones on the top sieve) will be sent to vertical impact Crusher (sand maker) for fine crushing, and then to vibrating screen again for screening. This forms closed and continuously automatic cycles.

The Sand Making Line mainly includes Vibrating Feeder, Jaw Crusher, Impact Crusher, Hammer Crusher, Composite Crusher, Vertical Shaft Impact Crusher (Sand Maker), Vibrating Screen, Sand Washer, Belt Conveyor, Control System and so on. It can crush limestone, granite, basalt, river stones etc into sand for construction and building industry; capacity can be designed from 40 to 450TPH.
