SMS Hydraulic Cone Crusher Overview

SMS Series Hydraulic Cone Crusher Overview
SMS Series Hydraulic Cone Crusher is new crushing machine with high performance. It is suitable for hard and medium hard rocks and ores.It has noable and special features with Fixed main shaft,Modified insurance cylinder, accumulator,Clear cavity,Locking the adjusting ring,Hydraulic adjusting the discharge opening,Integration base,Optimized cavity, higher capacity,etc.It is widely used in Metallurgical, aggregate, building material industries,etc.SMS Series Hydraulic Cone Crusher can crush Iron ore,copper ore,slag,pebbles,quartz,granite,basalt,diabase,etc.
SMS Hydraulic Cone Crusher Features and Benefits:
1.The biggest advantage is to let all the stress of the parts is more reasonable, power transformation is more effective, and it can be used more eccentric distance and higher speed, so as to reach a higher yield .
2.When crusher in iron or other load suddenly increases, the hydraulic oil in the insurance cylinder can flow back to the accumulator instantaneously, the rapid uplift piston rod, so as to better protect crusher spare parts and reduce the impact load on the machine damage .
3.SMS series fully hydraulic cone crusher adopts the design of the bumper and clear cavity oil cylinder independently, and use more stable and reliable the single cylinder, so as to improve the reliability of the hydraulic system.
4.Once finish the adjustment of discharge opening, the lock of adjusting ring can fulfill by hydraulic lock, you can press one button to complete the thing, so not only greatly reducing the labor intensity, saving down time, but also ensuring the reliability of the lock.
5.SMS series fully hydraulic cone crusher adjusts the discharge opening through the hydraulic motor drive the adjustment set to achieve, with hydraulic lock solid cylinder locking adjusting sleeve, let you not need to the site can be competed the adjusting work.
6.The totally new design of integrated base includes installation modules, such as the main equipment, motor, belt cover, which simplifies the installation step and bring great convenience for the user.
7.The cavity has characteristics of high output and low energy consumption.Under the same diameter mantle, the crushing stroke longer, larger crushing ratio.Laminated crushing function can be realized when full load, which contributes to better shape (cubic) and more stable product size.

SMS Hydraulic Cone CrusherWorking

SMS Hydraulic Cone Crusher Working Principle:
SMS series hydraulic cone crusher is consist of main frame, drive shaft, eccentric, socket liner, crushing body, adjusting device, adjusting sleeve, lubrication system and hydraulic system. When the aggregate crusher working, the motor drives the eccentric rotating through the drive shaft and a pair of bevel gear, cone axis does rotary pendulum movement under the force of eccentric sleeve , which makes the mantle surface sometimes near the concave, sometimes far from the concave, so that the ore in the crushing cavity is continually squeezed and being broken. The material enter into the crusher from the upper feed opening, by crushing can be discharged from the bottom discharge opening.

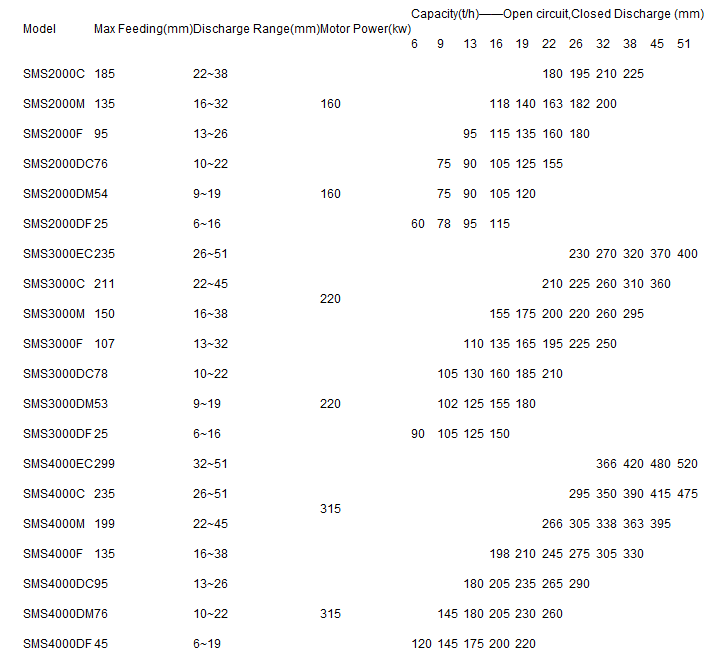

SMS Hydraulic Cone Crusher Technical Data
