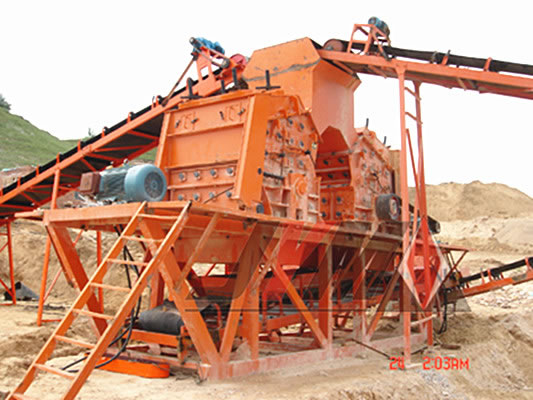

Impact Crusher Application:

Impact crusher is widely applied in mining, transportation, energy, construction and chemical industry. They are ideal choice for crushing and screening.This impact crusher features reasonable structure, high productivity, easy operation and maintenance and safe performance.

Impact Crusher Working Principle:

Impact crusher is a kind of broken by impact energy to the material of crushing machinery.When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.

Impact Crusher Features and Benefits:

1.Crushed product with cubical shape.
2.No-board connection; The blow bar with high chrome(high chromed blow bar.
3.High reduction ratio and crushing efficiency.
4.Easy maintenance and reliable operation.
5.Impact plate with a special shape.

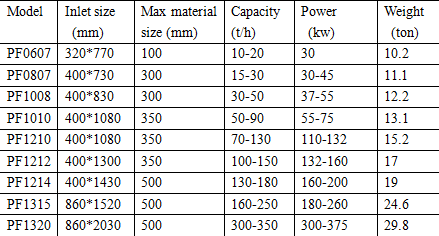

Impact Crusher Main Techincal Parameters:

Final product with cubical shape.

High chromed blow bar, durable and longer lifetime

High manganese impact liner, longer lifetime

Self-equipped open-top device can quickly complete the replacement of wearing parts such as the hammer

High reduction ratio and crushing efficiency

Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
