Specifications od jaw crusher:

2014 New Stone Jaw crusher PE-600*900
1.ISO9001:2000
2.Price:negotiable
3.Capacity:50-120T/H

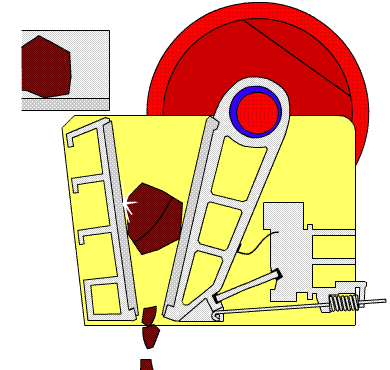

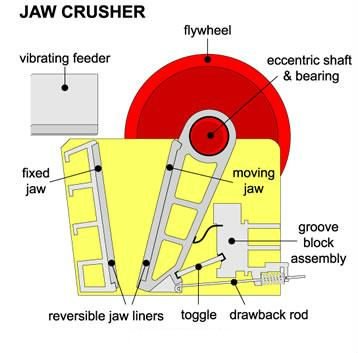

The working principle of jaw crusher:

The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the electro motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

Detailed Product Description1.ISO9001:2000
2.Price:negotiable
3.Capacity:8-500T/H
4.Payment terms:LC,TT Shanghai Jianye offers good quality crusher , stone crusher , jaw crusher , impact crusher ,VSI crusher , crusher plant , crushing plant .The jaw crushers Zhengzhou Huahong Heavy Industry Co.Ltd offers are ideal for primary and secondary crushing. Application:PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa. This machine is suitable for mines,building materials,highway,railway,water conservancy and chemical industry,etc.
Futures of jaw crusher:
1) Firm structure, stable performance, large capacity, even producing granularity.
2) With the increase of production, our jaw crusher can greatly reduce the operating costs.
3) Convenient maintenance and economical running expense..
4) The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity.

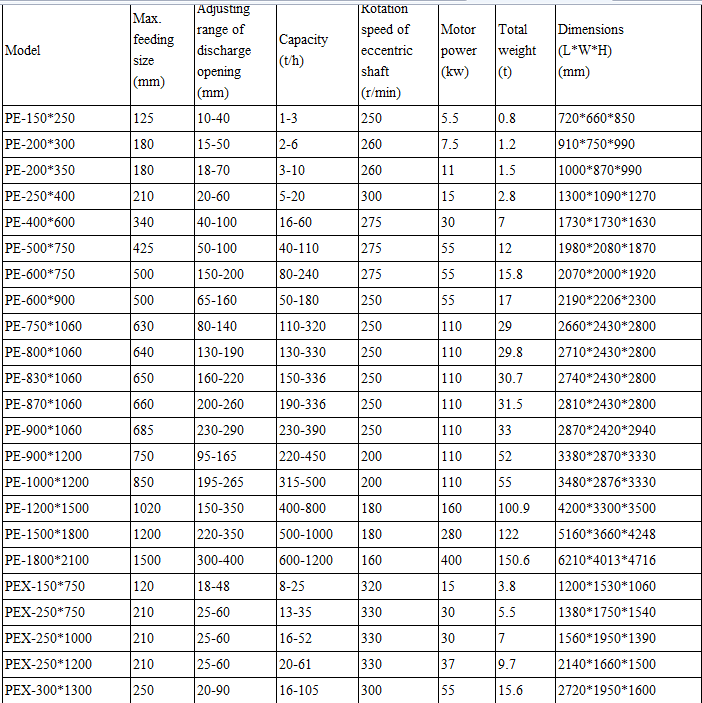

Specification of jaw crusher:

Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
