Introduction of rotary Dryer:

Rotary dryer is a drying device, widely used in mining equipment. It can be divided into two categories, direct and indirect heat transfer drum dryers.The Rotary Dryer is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made into rotary body, lifting blade, driving device, supporting device etc. The Dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.

Structure of rotary dryer:

In order to increase the material evenly distributed in the rotor parts of the cross section in good contact with the drying medium, in the cylinder body installation raise plates. There are several types of raise plate.

1). lifting type: For large or easy to bond the material in the tube wall.

2).Four formats type: Suitable for big density, not crisp or not easily scattered materials. The raise plate will be divided into four panes, and were mutually connected fan-shaped workout room, Materials and the contact surface of the hot gas than large of the lifting type, and also can increase of the filling material rate and reduce material landing height and reduce dust quantity loss and so on.

3).Cross-shaped or frame-shaped: applicable to brittle and easy dispersion small pieces of material, make the material can be evenly dispersed in cylinder whole section.

4).Sleeve type: For double entry Heat transfer for the double (or half the diameter heating) rotary drum dryer raise plate.

5).Separate format (fan): For very fine particles and the material prone to flying powder. materials accumulate on grid board when it into, then cylinder rotates, the material is turning and continue contacts with the hot gases, at the same time, the decrease of height landing, reducing the dry material being gas away possibility.

Advantages of rotary dryer:
The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.

Application of rotary dryer:

Rotary dryer is used to dry slag, clay, limestone; it is mainly used for cement, chemical, metallurgical, building materials industries

Working principle of rotary dryer:

The auto-combustion device provides heat resource for our rotary dryer, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material is thus dried gradually.

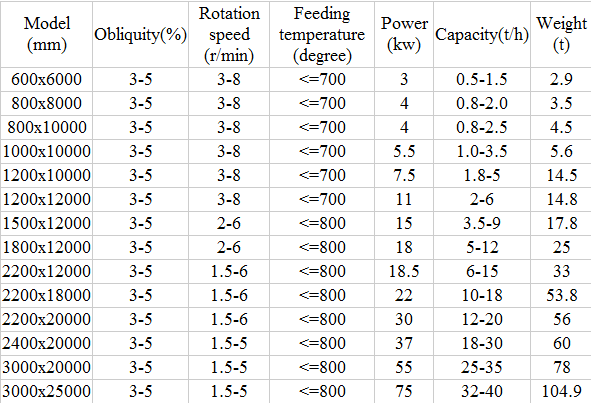

Techinical Parameter of Rotary Dryer:
