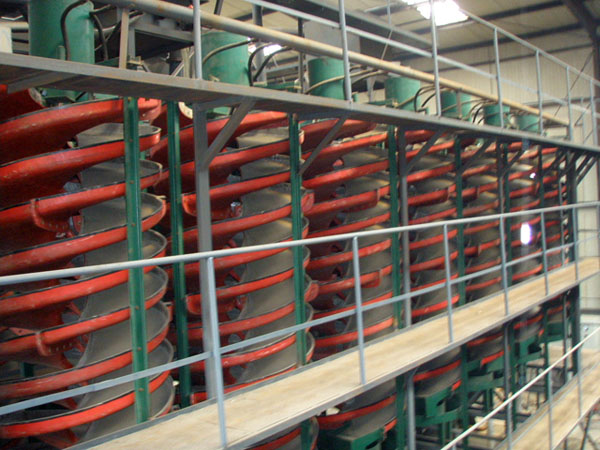

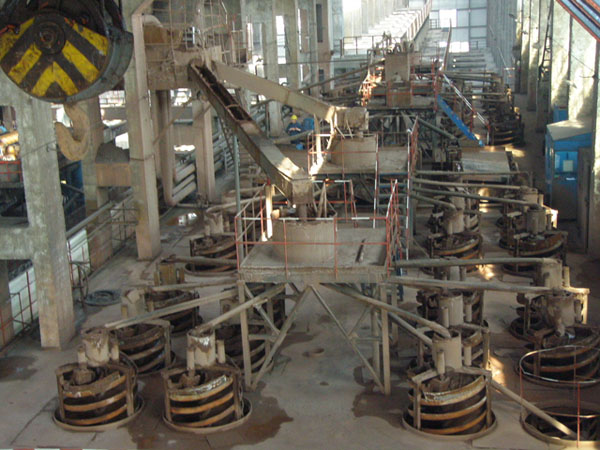

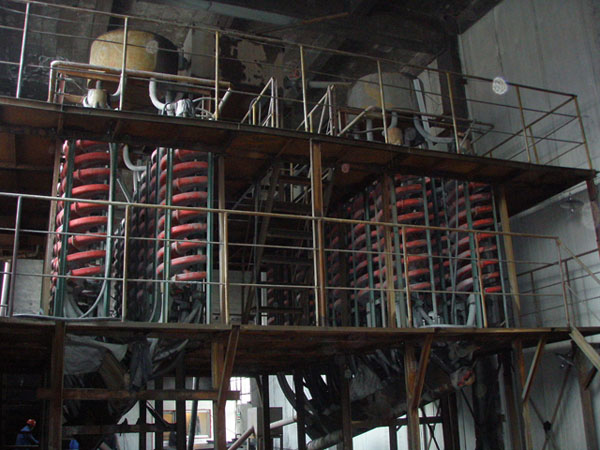

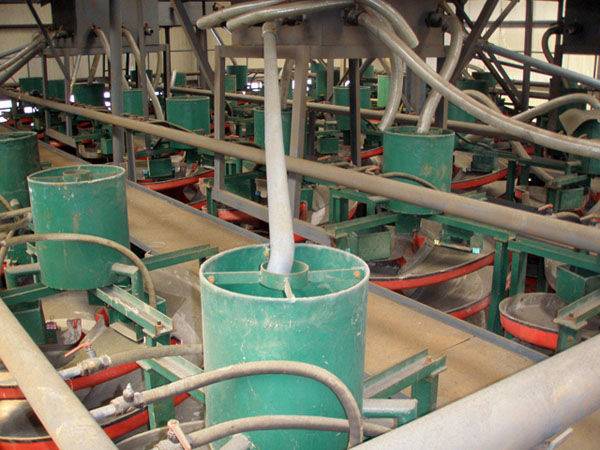

The details of spiral chute：
Spiral Chute is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are small footprint, without power, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes. it is especially for concentrating sand ore in beach, riverside, seashore and stream.
Features of spiral chute：
High recovery ratio, High efficiency beneficiation
Small footprint, Without power
Low operating cost and long working life
Widely use range
Simple installation and easy maintenance
Rust and corrosion resistant;
No noise and no pollution,
The work safe and reliable
Main technical parameters of spiral chute:
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | |
Spiral Diameter (mm) | 2000 | 1500 | 1200 | 900 | 600 | |
Spiral Pitch (mm) | 1200 | 720/540 | 720/540 | 675/540 | 450/360 | |
Max Spiral Start | 3 | 4 | 4 | 4 | 3 | |
Max turn each start | 4 | 5 | 5 | 5 | 5 | |
Feeding Particle Size (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | |
Feeding Density (%) | 20-45 | 25-50 | 25-55 | 25-55 | 25-55 | |
Capacity (t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.8-1.2 | |
Outline Size
| L(mm) | 2300 | 1560 | 1360 | 1060 | 700 |
W(mm) | 2300 | 1560 | 1360 | 1060 | 700 | |
H(mm) | 6500 | 5230 | 5230 | 4000 | 2600 | |
Weight (kg) | 900 | 800 | 600 | 400 | 150 | |
